Mailbox Full - Archiving

Vaughn Wellenreiter

Modified on: Tue, 7 Feb, 2023 at 8:23 AM

1. Give yourself the Exchange Administrator role in PIM

Open Microsoft 365 admin center
Show all - Exchange admin center
Classic admin

2. Recipients > Shared

3. Mailboxes

4. Search for mailbox name/user, open mailbox

5. Mailbox features

Retention policy. Shared Mailbox Retention

6. Change retention policy to Shared Mailbox Retention

7. Enable Archiving (scroll down if you don't see it)

Save out

Warning The user hasn't logged on to mailbox 'Carolyn Pham' ('edg7ce6a- cd8b-4330-b3b2-ac06f5a007e2'), so there is no data to retum. After the user logs on, this waming will no longer appear.

If you get this error when you open back up it's fine, just hit OK

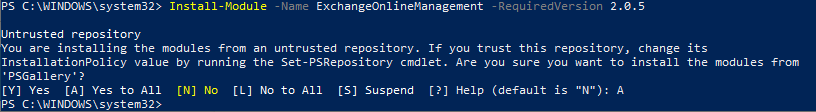

ps c: Install-module ntrusted repository ou are installing the modules from an - Name Exchangeonlinemanagement -RequiredVersion 2.ø.5 untrusted repository. If you trust this repository, change its Installationpolicy value by running the Set-PSRepository cmdlet. Are you sure you want to install the modules from [Y] Yes CA] Yes to All [N] No [L] No to All [S] suspend Help (default is "N"): A ps

8. Run Powershell as Administrator

9. Install-Module -Name ExchangeOnlineManagement -RequiredVersion 2.0.5

Run this to start the archiving

Run the below commands as Admin

he ble Set- Executionpolicy unrestricted Import-module Exchangeonlinemanagement Connect- ExchangeOnI i ne module allows access to all existing remote PowerSheII (VI) cmdlets cmdlets . in addition to the 9 new, faster, and more reli Old Cmd I et s - CAsmai1box Get Get- mailbox Get-mail s s ion Get-mailboxFoIderStatistics Get- mailboxpermission Get-mailboxStatistics Get-mobileDeviceStatistics Recipient Get - Recipi entpermission Get - New/ReIiabIe/Faster Cmdlets - EXOCAsmai 1 box Get - Exomailbox Get Get - EXOMai I boxFoIderPermi s s ion Get - EXOmaiI boxF 01 derStati st i c s Get- EXOMai I boxPermi s si on Get- EXOmaiIboxStatistics Get- EXOMobi I eDevi st i c s - EXORecipi ent Get - EXORecipi entPermi s s ion Get o get additional information, run: Get-Help Connect-Exchangeonline or check https://aka.ms/exops-docs end your product improvement suggestions and feedback to exocmdletpreviev«service.microsoft.com. For issues he module, contact microsoft support. Don 't use the feedback alias for problems or support issues. Error Acquiring Token: User canceled authentication. related to

10. Run the following commands:

Set-ExecutionPolicy Unrestricted
Import-Module ExchangeOnlineManagement
Close Powershell

Run PowerShell as a regular instance

11. Reopen PowerShell AS A REGULAR INSTANCE AND NOT ADMIN

12. Run the following command:

Connect-ExchangeOnline

When it opens up the prompt, make sure that you're using admin account for the Civic login page, then it will prompt a DUO push

13. Run the following command:

Start-ManagedFolderAssistant -identity USER@civicfs.com

If the above command doesn't work, follow the steps below for Start-ManagedFolderAssitant

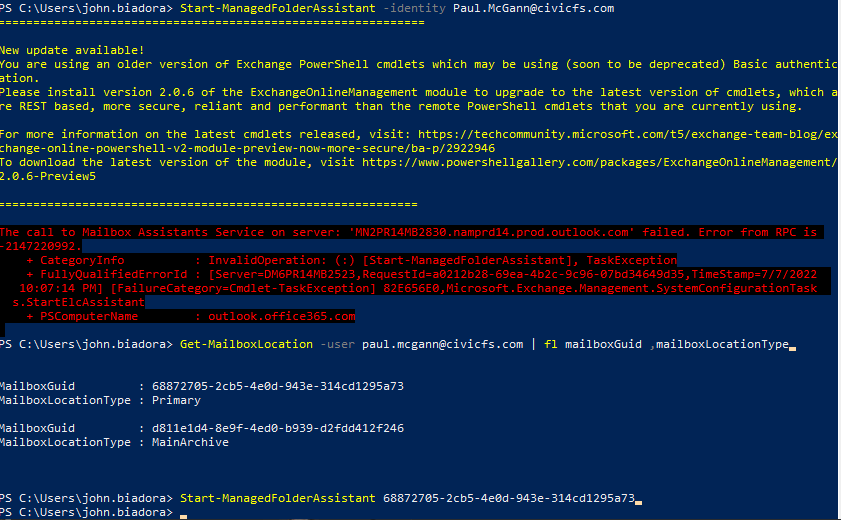

'S C: Start-managedFoIderAssistant •ew update available! The call to P,siltcx Zssistsnts Service on server: -identity Paul.mcGann@civicfs.com Vou are using an older version of Exchange PowerSheII cmdlets which may be using (soon to be deprecated) Basic authentic ation. 'lease install version 2.ø.6 of the Exchangeonlinemanagement module to upgrade to the latest version of cmdlets, which a re REST based, more secure, reliant and performant than the remote PowerSheII cmdlets that you are currently using. For more information on the latest cmdlets released, visit: https://techcommunity.microsoft.com/t5/exchange-team-bIog/e change- online- powers hell - v2-moduI e- previ ew- now- more- secure/ ba- p/ 2922946 ro download the latest 2 .e. 6- Previews -214722e992 . + Categorylnfo version of the module, visit https://www.powershellgallery.com/packages/Exchangeonlinemanagement/ .outlooc.com' failed . Error from VC is . t:) :stsrt-msnsgetfoltergssistsnt], Tssexce;tion + FullyQuaIifiedErrorId . le:e7 PM] 82ES5SEe,microsoft . Exchange .msnsgement .SystemConfigurstionTssc s.StsrtEIcZssistsnt PSCom;uterNsme outlooc.office3S5.com C: Get-mailboxLocation -user paul.mcgann@civicfs.com I fl mailboxGuid 'la i I boxfu id . 68872785-2cb5-4eød-943e-314cd1295a73 nailboxLocationType . Primary 'la i I boxfu id 6811 eld4- 8e9f-4edø- d2fdd412+246 "ail boxLocationType . mainArchive , mail ionType 'S C: Start-managedFoIderAssistant 688727% -2cb5-4eød-943e-314cd1295a73

If you get the error for "The call to mailbox assistants service on server failed" input the commands below:

Get-MailboxLocation -user First.Last@civicfs.com | fl mailboxGuid ,mailboxLocationType

Grab the GUID of the PRIMARY mailbox

Start-ManagedFolderAssistant PrimaryMailboxGuid

Ex: Start-ManagedFolderAssistant 68872705-2cb5-4e0d-943e-314cd1295a73

Exchange admin center dashboard recipients permissions compliance management organization protection advanced threats mail tow mobile public folders unified messaging hybrid New Exchange admin center mailboxes groups resources c Edit Mailbox - Google Chrome Be more productive witha personalize carol DISPLAY NAME Carolyn Pharn Carolyn Pham general mailbox delegation mailbox usage contact information organization email address mailbox features member of MailTip IMAP: Enabled Disable POP3: Enabled Disable MAPI: Enabled Disable Litigation hold: Disabled Enable Archiving: Enabled Local archive created 16.22 KB used, 0% of 50 G8. Disable View details Mail FLOW Delivery Options Delivery options control forwarding and recipient limits. View details Save Cancel

14. After the above commands, open up the mailbox/user and check that the archiving is going through (You'll see like 16kb being used, this means it started)

Usually starts archiving overnight
